Auto Produce Line 2 Heads Viscosity Paste Filling Machine

Auto Produce Line 2 Heads Viscosity Paste Filling Machine

Product Item：YTK-QZDG2

Filling heads: 2 nozzles

Filling range:5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Suitable filling product: kinds of thin or viscosity product.

Produce as demand, accept customization

Category：Auto Production Line

Description

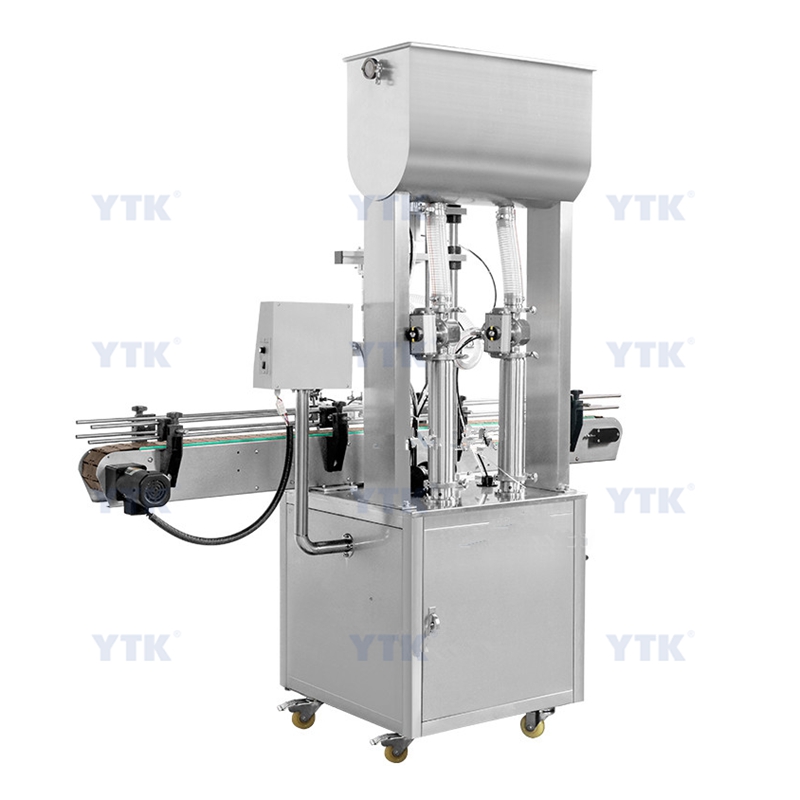

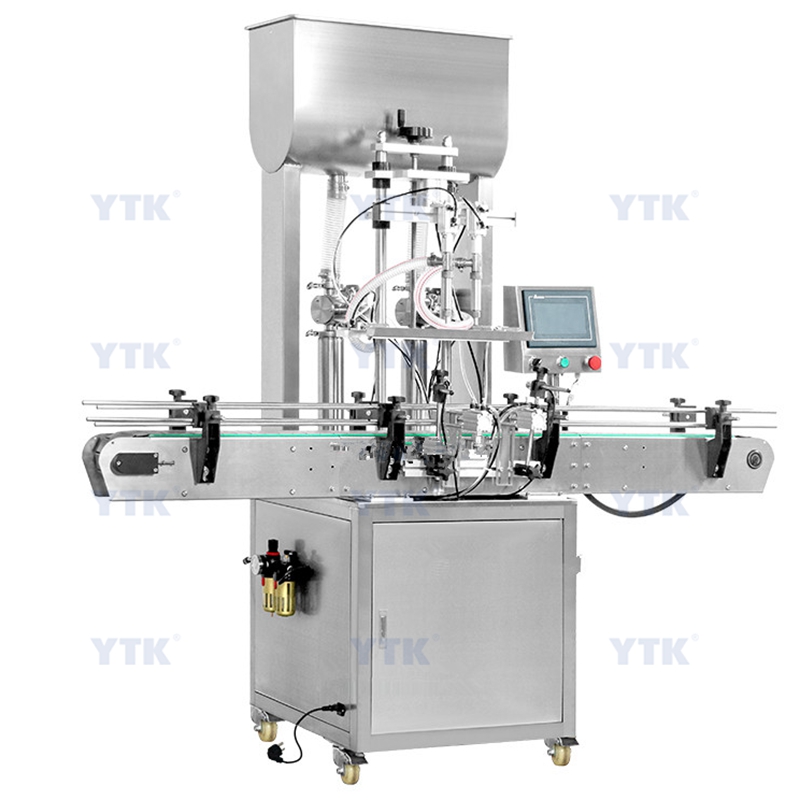

Auto Produce Line 2 Heads Viscosity Paste Filling Machine

auto honey filler.jpg

Product Description

Description

There are several nozzles and customers can control each nozzle separately if they need this.This full automatic liquid filling machine is with conveyor and can be used as one part of production line.These are all help you improve working efficiency greatly.

Specification

Model	YTK-QZDG2 100-1000ML
Voltage	110/220V 50-60HZ
Flling range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working speed(base on water)	10-40bottles/min
Filling accuracy	≤+1%
Conveyor size	About 1990100mm(LW)
Size of filling nozzle	φ10mm
Size of air compressor connector	φ10mm
Power of whole machine	800W
Net weight/Gross weight	About 220kg/370kg
Machine size	About 200012002300mm
Package size	About 115010002130mm

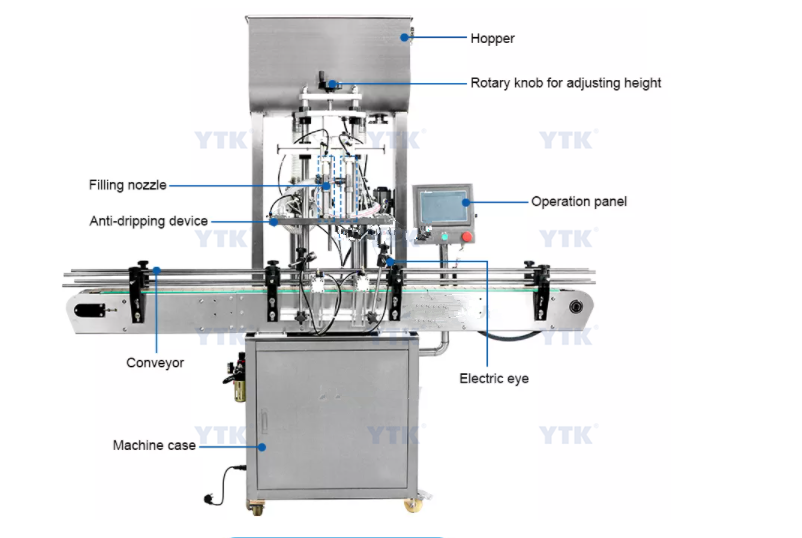

Product Detail

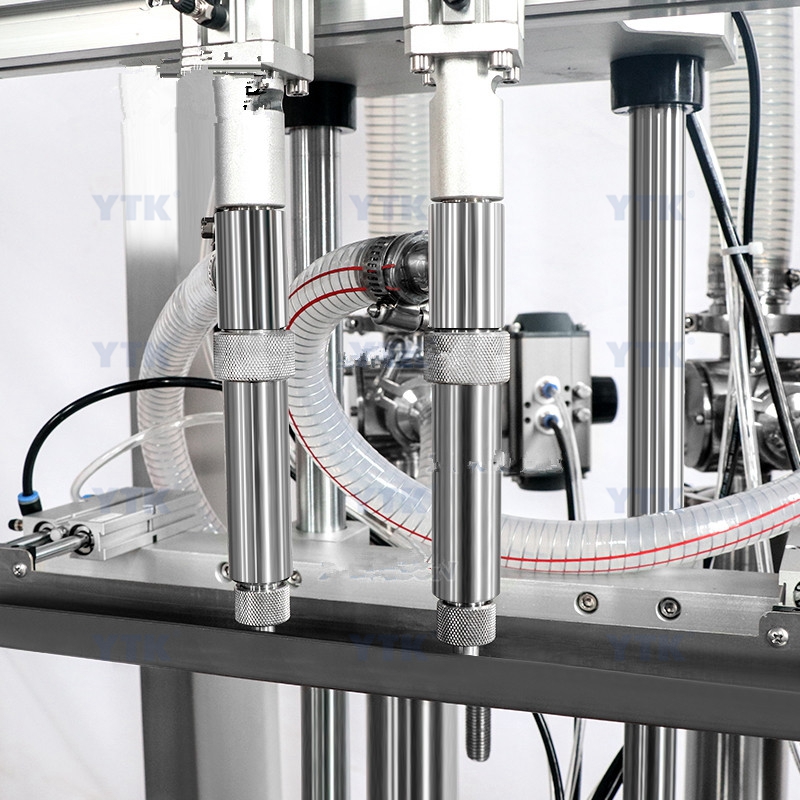

Filling nozzles with anti-dripping design, we can customize multiple filling nozzle as production needs.Each nozzle of this machine can be controlled separately.

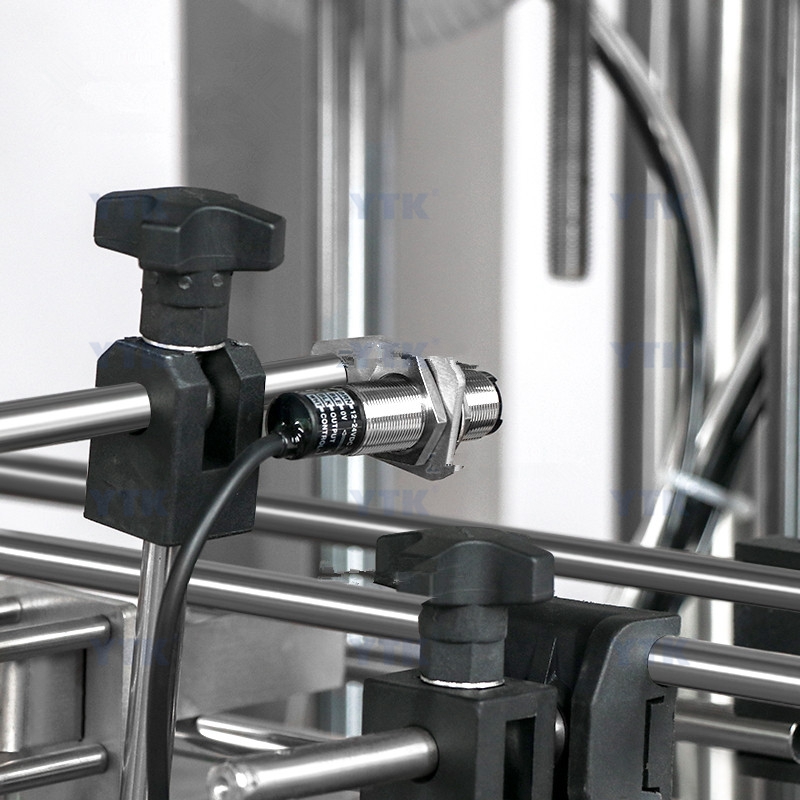

The bottle sensor can be used to detect bottles and prevent from missing or wasting bottles,this ensures the filling accuracy.

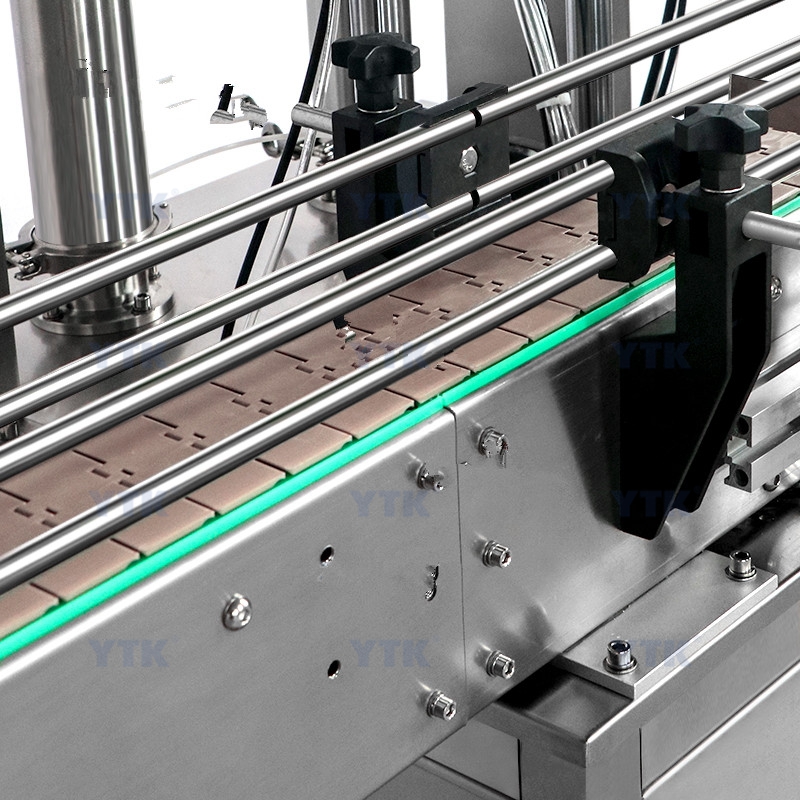

High quality conveyor belt makes it smoother when transferring bottles,the size of it is 1990mm*100mm(L*W),we can customize the size according to your production needs.

Product Real Shooting
